| Frequency Range | DC-2100 MHz and 2400-18000MHz |
| Insertion Loss | 2.5 dB max |
| Pass Band Flatness | TBD |
| Return Loss | 10 dB min |
| Group Delay Variation | TBD |
| Power Handling | 5W cw max |
| Rejection | ≥50dB@2200-2300MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 160mm*30mm*12mm |
| Suface Finish | Black Painted |
2200-2300MHz SMA-Female Suspended Stripline Bandstop Filter Rated at 5 Watts (CW)
The HRT-SF(2250/100)-2489SA is a suspended strpline notch filter. The pass band is DC-2100MHz and 2400-18000MHz.lt has excellent rejection ≥50dB@2200-2300MHz. It has a maximum insertion loss of 2.5dB. The filter has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : DC-2100 MHz and 2400-18000MHz
Insertion Loss : 2.5 dB max
Return Loss : 10 dB min
Rejection : ≥50dB@2200-2300MHz
Power : 5 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 160mm*30mm*12mm
Finishing : Black White

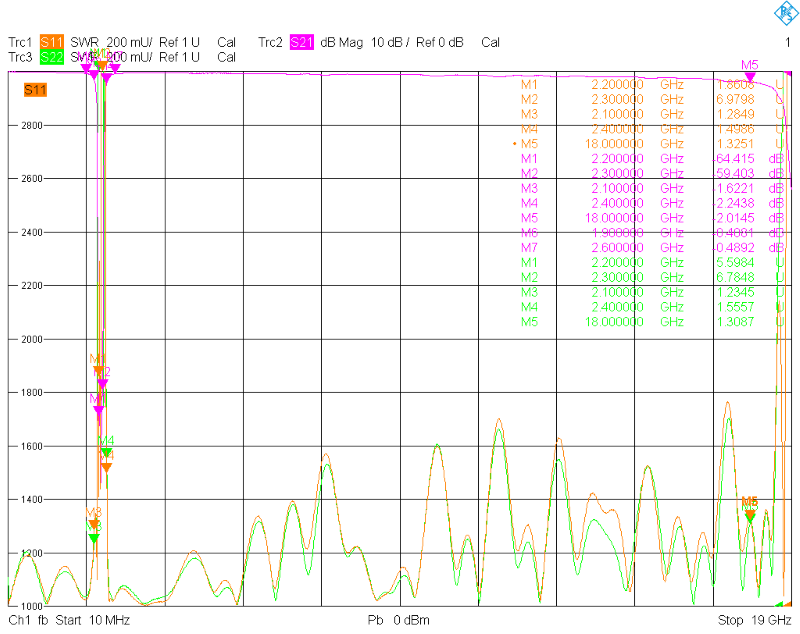

Test Plot:
More details can be seen in data sheet.
