SKU：HRT-SF(2110/180)-1595S
CATEGORY：Filters
TAGS：Bandstop Filters
| Frequency Range | DC-1970 MHz and 2250-6000MHz |
| Insertion Loss | 2.0 dB max |
| Pass Band Flatness | TBD |
| Return Loss | 12 dB min |
| Group Delay Variation | TBD |
| Power Handling | 10W cw max |
| Rejection | ≥50dB@2020-2200MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 320mm*72mm*55mm |
| Suface Finish | Black Painted |
2020-2200MHz SMA-Female Cavity Bandstop Filter Rated at 10 Watts (CW)
The HRT-SF(2110/180)-1595S is a cavity bandstop filter. The pass band is DC-1970 MHz and 2250-6000MHz.lt has excellent rejection ≥50dB@2020-2200MHz . It has a maximum insertion loss of 2.0 dB. HRT-SF(2110/180)-1595S has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : DC-1970 MHz and 2250-6000MHz
Insertion Loss : 2.0 dB
Return Loss: 12 dB min
Rejection : ≥50dB@2020-2200MHz
Power : 10 W cw
Operating Temp. : 0℃ to +40℃
Dimension L*W*H ： 320mm*72mm*55mm
Finishing : Black Painted

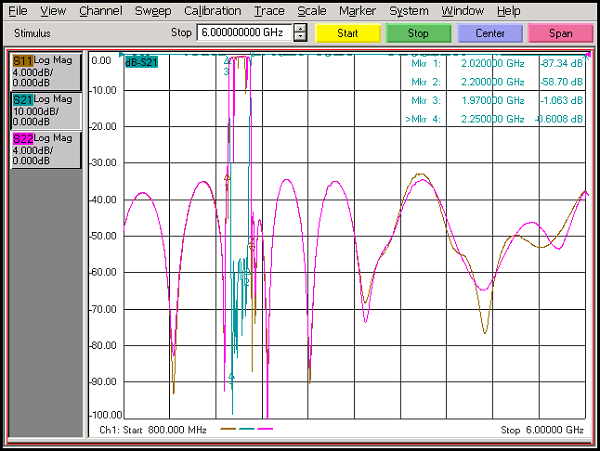

Test Plot:
More details can be seen in data sheet.
