HRT-SF(2450/100)-1739S
The HRT-SF(2450/100)-1739S is a cavity notch filter. The pass band is DC-2350MHz and 2550-6000MHz.lt has excellent rejection ≥40dB@2400-2500MHz. It has a maximum insertion loss of 2.0dB. The filter has SMA-Female connectors.
- Specifications
- Description
- Contact Us
| Frequency Range | DC-2350 MHz and 2550-6000MHz |
| Insertion Loss | 2.0 dB max |
| Pass Band Flatness | TBD |
| VSWR | 1.5:1 max |
| Group Delay Variation | TBD |
| Power Handling | 20W cw max |
| Rejection | ≥40dB@2400-2500MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 202mm*23mm*44mm |
| Suface Finish | Black Painted |

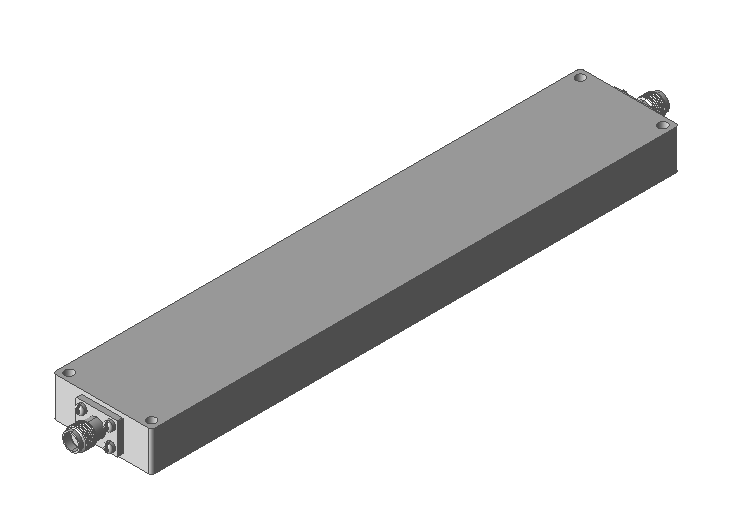

2400-2500MHz SMA-Female Cavity Bandstop Filter Rated at 20 Watts (CW)
The HRT-SF(2450/100)-1739S is a cavity notch filter. The pass band is DC-2350MHz and 2550-6000MHz.lt has excellent rejection ≥40dB@2400-2500MHz. It has a maximum insertion loss of 2.0dB. The filter has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : DC-2350 MHz and 2550-6000MHz
Insertion Loss : 2.0 dB max
VSWR : 1.5:1 max
Rejection : ≥40dB@2400-2500MHz
Power : 20 W cw
Operating Temp. : 0℃ to +40℃
Dimension L*W*H ： 202mm*23mm*44mm
Finishing : Black Painted
Test Plot:
More details can be seen in data sheet.
