HRT-SF(2060/42)-2245N
The HRT-SF(2060/42)-2245N is a cavity notch filter. The pass band is 1000-2000MHz and 2110-2556MHz.lt has excellent rejection ≥80dB@2039-2081MHz. It has a maximum insertion loss of 1.0dB. The filter has N-Female connectors.
- Specifications
- Description
- Contact Us
| Frequency Range | 1000-2000 MHz and 2110-2556MHz |
| Insertion Loss | 1.0 dB max |
| Pass Band Flatness | TBD |
| Return Loss | 14 dB min |
| Group Delay Variation | TBD |
| Power Handling | 60W cw max |
| Rejection | ≥80dB@2039-2081MHz |
| Input Connectors | N-Female (50 ohms) |
| Output Connectors | N-Female (50 ohms) |
| Size | 254mm*30mm*33mm |
| Suface Finish | Black Painted |
2039-2081MHz N-Female Cavity Bandstop Filter Rated at 60 Watts (CW)
The HRT-SF(2060/42)-2245N is a cavity notch filter. The pass band is 1000-2000MHz and 2110-2556MHz.lt has excellent rejection ≥80dB@2039-2081MHz. It has a maximum insertion loss of 1.0dB. The filter has N-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : 1000-2000 MHz and 2110-2556MHz
Insertion Loss : 1.0 dB max
Return Loss : 14 dB min
Rejection : ≥80dB@2039-2081MHz
Power : 60 W cw
Operating Temp. : 0℃ to +40℃
Dimension L*W*H ： 254mm*30mm*33mm
Finishing : Black White

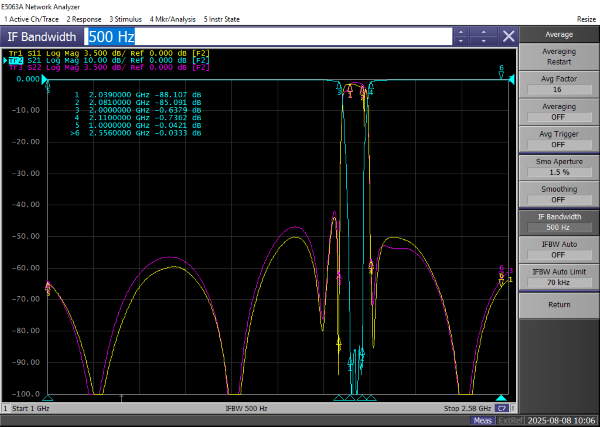

Test Plot:
More details can be seen in data sheet.
