SKU：HRT-DX(1160/2200)-1110S
CATEGORY：Diplexers
TAGS：Cavity Diplexers
| Rx Frequency | 1160-1615 MHz |
| Tx Frequency | 2200-2505 MHz |
| Insertion | 0.5dB max |
| Return Loss | 14dB min |
| Group Delay Variation | TBD |
| Phase Matching | TBD |
| Rejection | ≥75dB@1100MHz, ≥80dB@1699MHz |
| Rejection | ≥50dB@2180MHz, ≥80dB@2090MHz, ≥80dB@2680MHz |
| Isolation | TBD |
| Power Handling | 50W max |
| ANT Connector | SMA-Female (50Ω) |
| Rx and Tx Connectors | SMA-Female (50Ω) |
| Weight | 0.5 Kg |
| Environment Class | TBD |
| Suface Finish | Black Painted |
1160-1615MHz and 2200-2505MHz SMA-Female Coaxial Cavity Diplexer Rated at 50 Watts (CW)
The HRT-DX(1600/2400)-1099S is a cavity diplexer. The pass band is 1600-2000 MHz and 2150-2400MHz..lt has excellent isolation ≥80dB@Rx and Tx bands. It has a maximum insertion loss of 0.5 dB. The HRT-DX(1600/2400)-1099S has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
RX Freq. Range : 1160-1615 MHz
Tx Freq. Range : 2200-2505 MHz
Insertion Loss : 0.5 dB
Return Loss : 14 dB
Rejection : ≥75dB@1100MHz, ≥80dB@1699MHz
Rejection : ≥50dB@2180MHz, ≥80dB@2090MHz, ≥80dB@2680MHz
Isolation : TBD
Power : 50 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 222*129.7*42 mm
Finishing : Paint Black

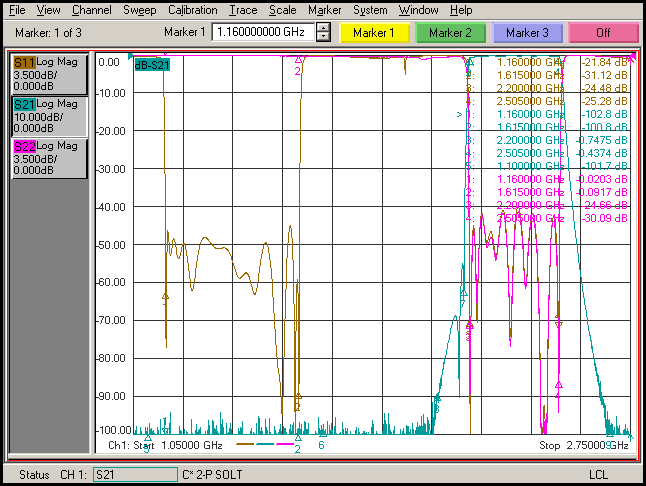

Test Plot:
More details can be seen in data sheet.
