SKU：HRT-DX(1882/1962)-702N
CATEGORY：Diplexers
TAGS：Cavity Diplexers
| Rx Frequency | 1850-1915 MHz |
| Tx Frequency | 1930-1950 MHz |
| Insertion | 1.5dB max |
| Return Loss | 18dB min |
| Group Delay Variation | TBD |
| Phase Matching | TBD |
| Rejection | TBD |
| Rejection | TBD |
| Isolation | ≥50dB@1850-1915MHz,1930-1995MHz |
| Power Handling | 100W max |
| ANT Connector | N-Female (50Ω) |
| Rx and Tx Connectors | N-Female (50Ω) |
| Weight | 0.94 Kg |
1850-1915MHz and 1930-1950MHz N-Female Coaxial Cavity Diplexer Rated at 100 Watts (CW)
The HRT-DX(1882/1962)-702N is a cavity diplexer. The pass band is 1850-1915MHz and 1930-1950MHz.lt has excellent isolation ≥50dB@1850-1915MHz and 1930-1950MHz. It has a maximum insertion loss of 1.5 dB. The HRT-DX(1882/1962)-702N has N-Female 50ohms connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
RX Freq. Range : 1850-1915 MHz
Tx Freq. Range : 1930-1950 MHz
Insertion Loss : 1.5 dB
Return Loss : 18 dB
Rejection : TBD
Rejection : TBD
Isolation : ≥50dB@1850-1915MHz,1930-1950MHz
Power : 100 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 157*154*38 mm
Finishing : Paint Black

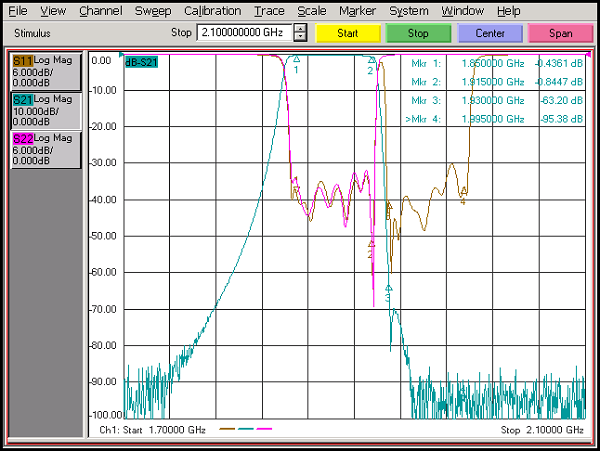

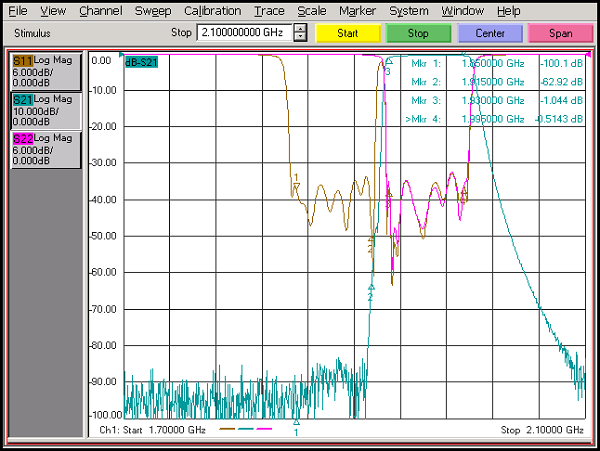

Test Plot:
More details can be seen in data sheet.
