SKU：HRT-DX(2535/2655)-003N
CATEGORY：Diplexers
TAGS：Cavity Diplexers
| Rx Frequency | 2500-2570 MHz |
| Tx Frequency | 2620-2690 MHz |
| Insertion | 1.0dB max |
| Return Loss | 15dB min |
| Group Delay Variation | TBD |
| Phase Matching | TBD |
| Rejection | TBD |
| Rejection | TBD |
| Isolation | ≥65dB@2500-2570MHz,2620-2690MHz |
| Power Handling | 50W max |
| ANT Connector | N-Female (50Ω) |
| Rx and Tx Connectors | N-Female (50Ω) |
| Weight | 0.44 Kg |
| Environment Class | TBD |
| Suface Finish | Black Painted |
2500-2570MHz and 2620-2690MHz N-Female Coaxial Cavity Diplexer Rated at 50 Watts (CW)
The HRT-DX(2535/2655)-003N is a cavity diplexer. The pass band is 2500-2570MHz and 2620-2690MHz.lt has excellent isolation ≥65dB@2500-2570MHz and 2620-2690MHz. It has a maximum insertion loss of 1.5 dB. The HRT-DX(2535/2655)-003N has N-Female 50ohms connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
RX Freq. Range : 2500-2570 MHz
Tx Freq. Range : 2620-2690 MHz
Insertion Loss : 1.0 dB
Return Loss : 15 dB
Rejection : TBD
Rejection : TBD
Isolation : ≥65dB@2500-2570MHz,2620-2690MHz
Power : 50 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 111*89*32 mm
Finishing : Paint Black

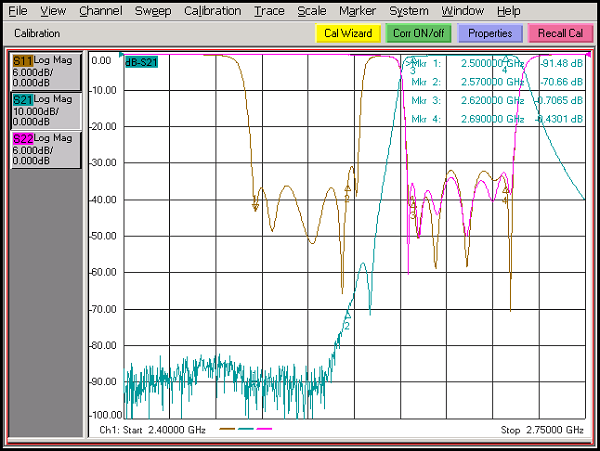

Test Plot:
More details can be seen in data sheet.
