SKU：HRT-DX(897/936)-1429N
CATEGORY：Diplexers
TAGS：Cavity Diplexers
| Rx Frequency | 896-898 MHz |
| Tx Frequency | 935-937 MHz |
| Insertion | 1.0dB max |
| Return Loss | 15dB min |
| Group Delay Variation | TBD |
| Phase Matching | TBD |
| Rejection | TBD |
| Rejection | TBD |
| Isolation | ≥80dB@896-898MHz,
935-937MHz |
| Power Handling | 50W max |
| ANT Connector | N-Female (50Ω) |
| Rx and Tx Connectors | N-Female (50Ω) |
| Weight | 0.7 Kg |
| Environment Class | TBD |
| Suface Finish | Black Painted |
896-898MHz and 935-937MHz N-Female Coaxial Cavity Diplexer Rated at 50 Watts (CW)
HRT-DX(897/936)-1429N is a cavity diplexer. The pass band is 896-898MHz and 935-937MHz.It has a maximum insertion loss of 0.5 dB. The HRT-DX(897/936)-1429N has N-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
RX Freq. Range : 896-898 MHz
Tx Freq. Range : 935-937 MHz
Insertion Loss : 1.0 dB
Return Loss : 15 dB
Isolation : ≥80dB@896-898MHz, 935-937MHz
Power : 60 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 157*81*57 mm
Finishing : Paint Black

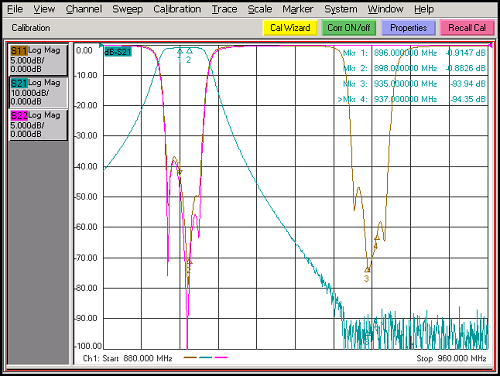

Test Plot:
More details can be seen in data sheet.
