SKU：HRT-BF(2245/90)-675S
CATEGORY：Bandpass Filters
TAGS：Cavity Filters
| Center Frequency(CF) | 2245 MHz |
| Bandwidth | 90 MHz |
| Insertion Loss | 1.5 dB max |
| Pass Band Flatness | 1.5 dB max |
| Return Loss | 15 dB min |
| Group Delay Variation | TBD |
| Power Handling | 20W cw max |
| Rejection | ≥40dB@2170MHz, ≥50dB@2150MHz, ≥40dB@2320MHz, ≥50dB@2340MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 82*56*45 mm |
| Suface Finish | Black Painted |
2200-2290MHz SMA-Female Coaxial Cavity Band Pass Filter Rated at 20 Watts (CW)
The HRT-BF(2245/90)-675S is a cavity band pass filter. The pass band is 2200-2290MHz.lt has excellent rejection ≥40dB@2170MHz. It has a maximum insertion loss of 1.5dB. The HRT-BF(2245/90)-675S has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Outline Drawing

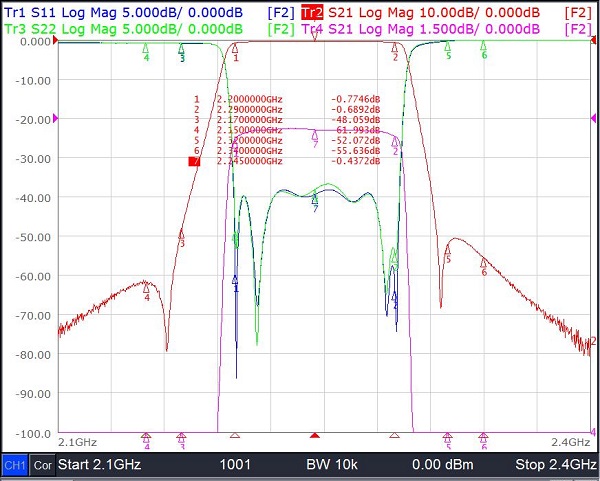

Test Plot
More details can be seen in data sheet.
