SKU：HRT-BF(4700/640)-Q9S
CATEGORY：Bandpass Filters
TAGS：Cavity Filters
| Center Frequency(CF) | 4700 MHz |
| Bandwidth | 650 MHz |
| Insertion Loss | 1.0 dB max |
| Pass Band Flatness | TBD |
| Return Loss | 15 dB min |
| Group Delay Variation | TBD |
| Power Handling | 25W cw max |
| Rejection | ≥80dB@5250-5280MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 107*39.9*28 mm |
| Suface Finish | Black Painted |
4380-5020MHz SMA-Female Coaxial Cavity Band Pass Filter Rated at 25 Watts (CW)
The HRT-BF(4700/640)-Q9S is a cavity band pass filter. The pass band is 4380-5020MHz.lt has excellent rejection ≥80dB@5250-5280MHz. It has a maximum insertion loss of 1.0dB. The HRT-BF(4700/640)-Q9S has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Outline Drawing

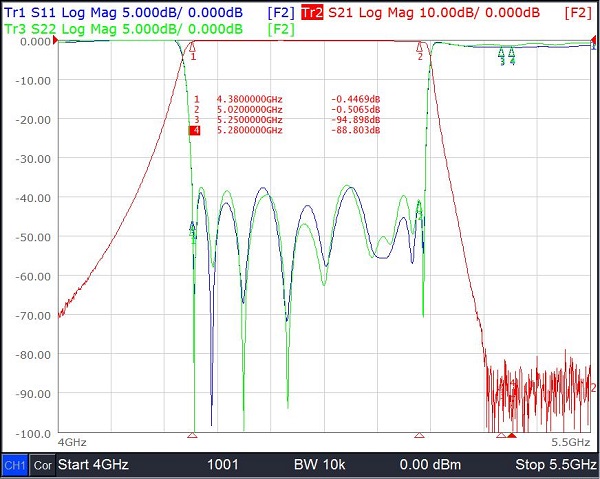

Test Plot
More details can be seen in data sheet.
