SKU：HRT-BF(6575/1380)-789S
CATEGORY：Filters
TAGS：6575GHz, Band Pass Filter,Coaxial Cavity Filter
| Center Frequency(CF) | 6575 MHz |
| Bandwidth | 1380 MHz |
| Insertion Loss | 0.6 dB max |
| Pass Band Flatness | TBD |
| Return Loss | 14 dB min |
| Group Delay Variation | TBD |
| Power Handling | 10W cw max |
| Rejection | ≥30dB@5650MHz,≥30dB@7550MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 106.5*15*15 mm |
| Suface Finish | Black Painted |
5885-7265MHz SMA-Female Coaxial Cavity Band Pass Filter Rated at 10 Watts (CW)
The HRT-BF(6575/1380)-789S is a cavity band pass filter. The pass band is 5885-7265 MHz..lt has excellent rejection ≥30dB@5650MHz. It has a maximum insertion loss of 0.6 dB. The HRT-BF(6575/1380)-789S has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : 1885-7265 MHz
Insertion Loss : 0.6 dB
Return Loss : 14 dB
Rejection : ≥30dB@5650MHz, ≥70dB@5120MHz ,≥30dB@7550MHz, ≥50dB@8-16GHz
Power : 10 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 106.5*15*15 mm
Finishing : Paint Black

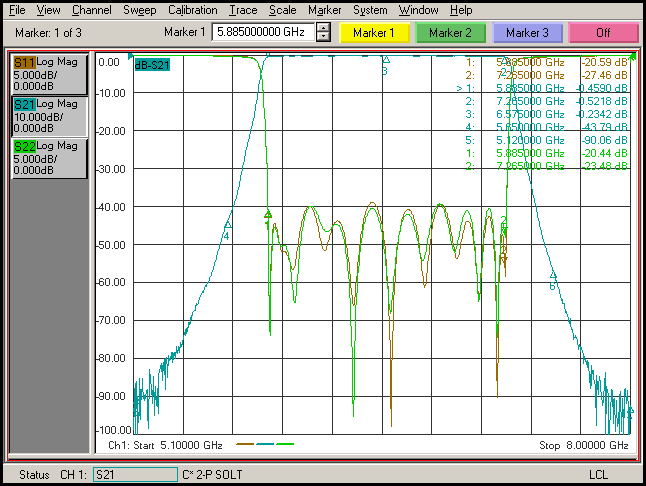

Test Plot:
More details can be seen in data sheet.
