SKU：HRT-LF(DC/2000)-01S
CATEGORY：Lowpass Filters
TAGS：DC-2GHz
| Frequency Range | DC-2000 MHz |
| Insertion Loss | 1.0 dB max |
| Pass Band Flatness | TBD |
| VSWR | 1.7:1 Max |
| Group Delay Variation | TBD |
| Power Handling | 5W cw max |
| Rejection | ≥50dB@2500-6000MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 57mm*30mm*14mm |
| Suface Finish | Black Painted |

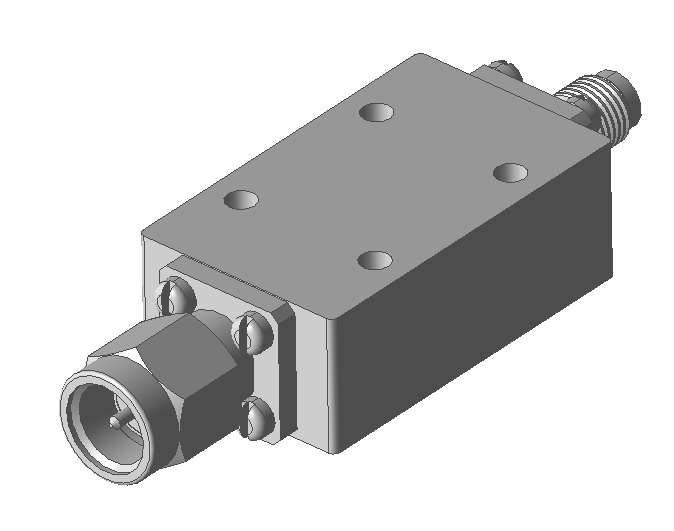

DC-2000MHz SMA-Female Microstrip Low Pass Filter Rated at 5 Watts (CW)
The HRT-LF(DC/2000)-01S is a suspended stripline low pass filter. The pass band is DC-2GHz.lt has excellent rejection ≥50dB@2.5-6GHz. It has a maximum insertion loss of 1.0dB. The filter has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.

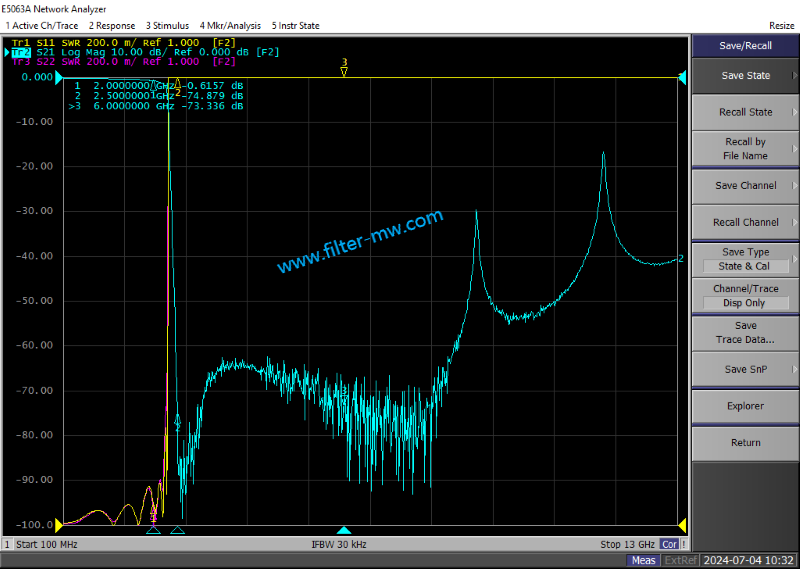

Test Plot
More details can be seen in data sheet.
