SKU：HRT-LF(DC/5600)-2282S
CATEGORY：Lowpass Filters
TAGS：DC-5.6GHz
| Frequency Range | DC-5600 MHz |
| Insertion Loss | 2.0 dB max |
| Pass Band Flatness | TBD |
| VSWR | 2.0:1 max |
| Group Delay Variation | TBD |
| Power Handling | 5W cw max |
| Rejection | ≥30dBc@6400MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 80mm*26mm*10mm |
| Suface Finish | Black Painted |
DC-5600MHz SMA-Female Microstrip Low Pass Filter Rated at 5 Watts (CW)
The HRT-LF(DC/5600)-2282S is a suspended stripline low pass filter. The pass band is DC-5.6GHz.lt has excellent rejection ≥30dBc@6400MHz. It has a maximum insertion loss of 2.0dB. The filter has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.

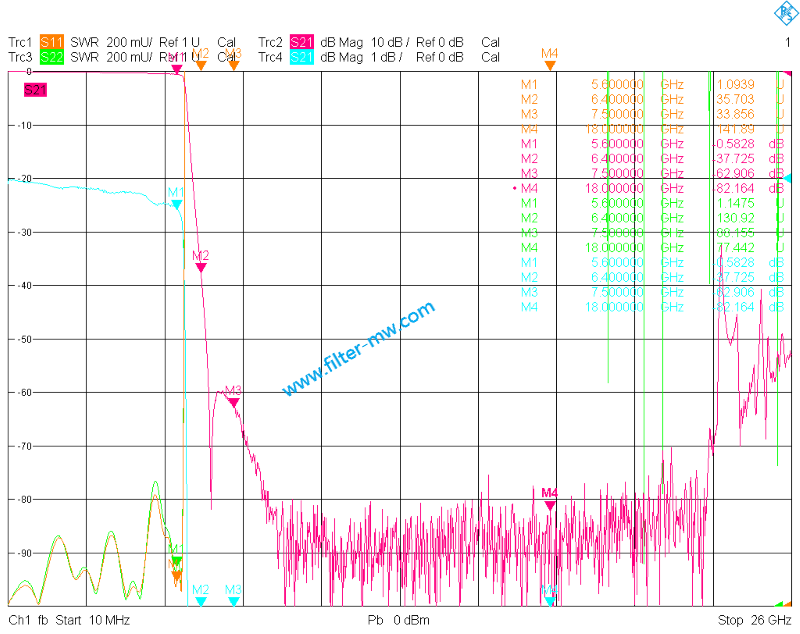

Test Plot
More details can be seen in data sheet.
