SKU：HRT-LF(DC/26000)-2151SM
CATEGORY：Lowpass Filters
TAGS：DC-26GHz
| Frequency Range | DC-26000 MHz |
| Insertion Loss | 3.0 dB max |
| Pass Band Flatness | TBD |
| Return Loss | 11 dB min |
| Group Delay Variation | TBD |
| Power Handling | 1W cw max |
| Rejection | ≥35dB@28000-40000MHz |
| Input Connectors | 2.92-Female (50 ohms) |
| Output Connectors | 2.92-Male (50 ohms) |
| Size | 27mm*16mm*10mm |
| Suface Finish | Black Painted |
DC-26000MHz 2.92-Female Microstrip Low Pass Filter Rated at 1 Watts (CW)
The HRT-LF(DC/26000)-2150SM is a suspended stripline low pass filter. The pass band is DC-26GHz.lt has excellent rejection ≥35dB@28-40GHz. It has a maximum insertion loss of 3.0dB. The filter has 2.92-Female and 2.92-Male connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.

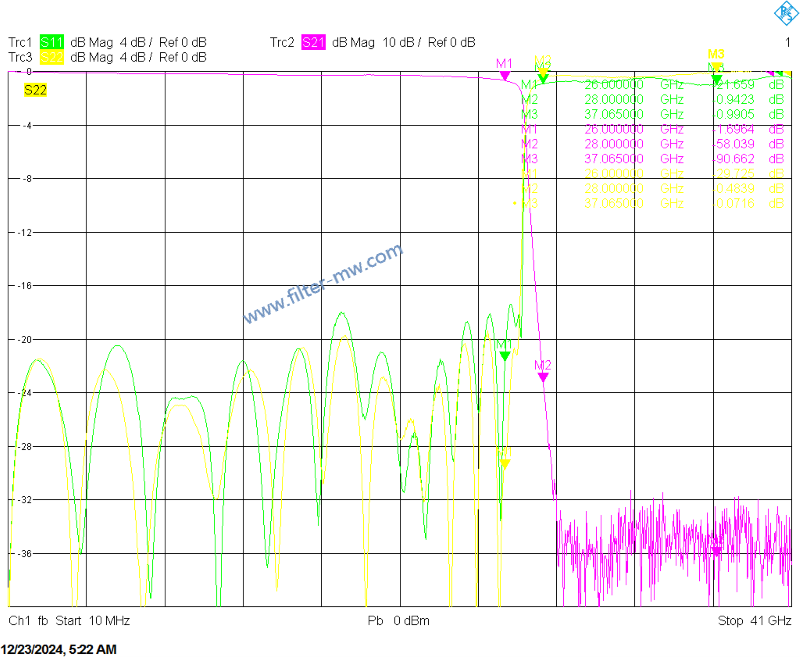

Test Plot
More details can be seen in data sheet.
