HRT-DQ(2000/8000)-10S

The HRT-DQ(2000/8000)-10S is a 10dB directional coupler that operates from 2 to 8 GHz and can handle up to 50 Watts . This SMA directional coupler offers 20 dB directivity and 1.2:1 max VSWR. The package interface uses SMA on all of the ports.
HRT-DQ(2000/8000)-10S
PDF DATASHEET
Qty:

SKU:HRT-DQ(2000/8000)-10S

CATEGORY:Directional Couplers

TAGS:2-8GHz, 10dB Directional Couplers

  • Specifications
  • Description
  • Contact Us
Frequency Range2000-8000 MHz
Nominal Coupling    10 dB
Nominal Coupling Loss0.45 dB
Coupling Flantess±1.0
Directivity20dB min
Insertion Loss0.5dB max (Excluding Nominal Coupling Loss)
VSWR Primary1.20:1 max
VSWR Secondary1.20:1 max
Power Handling50 Watts(Forward Power)
Input and Output ConnectorsSMA-Female (50 ohms)
Coupling Port ConnectorSMA-Female (50 ohms)
Size43*15*11 mm
Suface FinishBlack Painted

50 ohms 10dB SMA-Female Directional Coupler From 2GHz to 8GHz Rated at 50 Watts

The HRT-DQ(2000/8000)-10S is a 10dB directional coupler that operates from 2 to 8 GHz and can handle up to 50 Watts . This SMA directional coupler offers 20 dB directivity and 1.2:1 max VSWR. The package interface uses SMA on all of the ports.


Key Electrical Specifications

Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.


Outline Drawing

All Diminsion in mm(inches)

Outline Tolerances ±0.3(0.012)

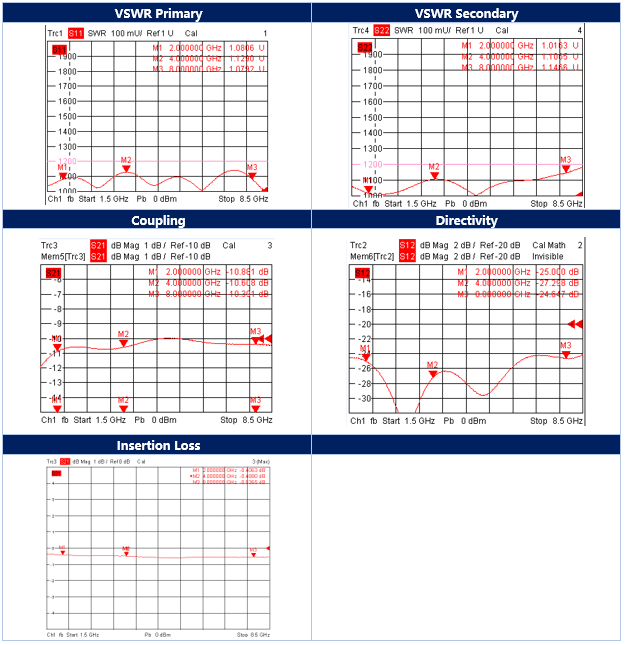

Test Plots

More details can be seen in data sheet.
