HRT-DQ(400/6000)-20S

The HRT-DQ(400/6000)-20S is a 20dB directional coupler that operates from 0.4 to 6 GHz and can handle up to 50 Watts . This SMA directional coupler offers 16 dB directivity and 1.3:1 max VSWR. The package interface uses SMA on all of the ports.
HRT-DQ(400/6000)-20S
PDF DATASHEET
Qty:

SKU:HRT-DQ(400/6000)-20S

CATEGORY:Directional Couplers

TAGS:0.4-6GHz, 20dB Directional Couplers

  • Specifications
  • Description
  • Contact Us
Frequency Range400-6000 MHz
Nominal Coupling    20 dB
Nominal Coupling Loss0.04 dB
Coupling Flantess±1.0
Directivity16dB min
Insertion Loss0.7dB max (Excluding Nominal Coupling Loss)
VSWR Primary1.30:1 max
VSWR Secondary1.30:1 max
Power Handling50 Watts(Forward Power)
Input and Output ConnectorsSMA-Female (50 ohms)
Coupling Port ConnectorSMA-Female (50 ohms)
Size112*17*11 mm
Suface FinishBlack Painted

50 ohms 20dB SMA-Female Directional Coupler From 0.4GHz to 6GHz Rated at 50 Watts

The HRT-DQ(400/6000)-20S is a 20dB directional coupler that operates from 0.4 to 6 GHz and can handle up to 50 Watts . This SMA directional coupler offers 16 dB directivity and 1.3:1 max VSWR. The package interface uses SMA on all of the ports.


Key Electrical Specifications

Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.


Outline Drawing

All Diminsion in mm(inches)

Outline Tolerances ±0.3(0.012)

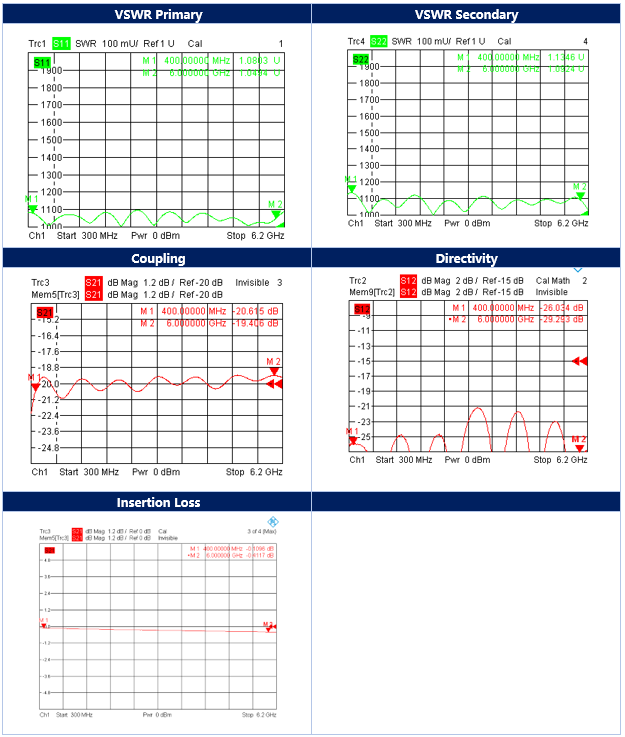

Test Plots

More details can be seen in data sheet.
