SKU：HRT-HF02P529K
CATEGORY：Filters
TAGS：2.5-29GHz High Pass Filters
| Frequency Range | 2.5-29 GHz |
| Insertion Loss | 1.5 dB max |
| Pass Band Flatness | TBD |
| VSWR | 1.8:1 max |
| Group Delay Variation | TBD |
| Power Handling | 15W cw max |
| Rejection | ≥50dBc@DC-1.85GHz |
| Input Connectors | 2.92-Female (50 ohms) |
| Output Connectors | 2.92-Female (50 ohms) |
| Size | 24mm*18mm*10mm |
| Suface Finish | Black Painted |
2.5-29GHz 2.92-Female Suspended Stripline High Pass Filter Rated at 15 Watts (CW)
The HRT-HF0225S is a suspended stripline highpass filter. The pass The HRT-HF02P529K is a suspended stripline highpass filter. The pass band is 2.5-29GHz.lt has excellent rejection ≥50dBc@DC-1.85GHz. It has a maximum insertion loss of 1.5dB. The filter has 2.92-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : 2.5-29 GHz
Insertion Loss : 1.5 dB max
VSWR : 1.8:1 max
Rejection : ≥50dBc@DC-1.85GHz
Power : 15 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 24mm*18mm*10mm
Finishing : Paint Black

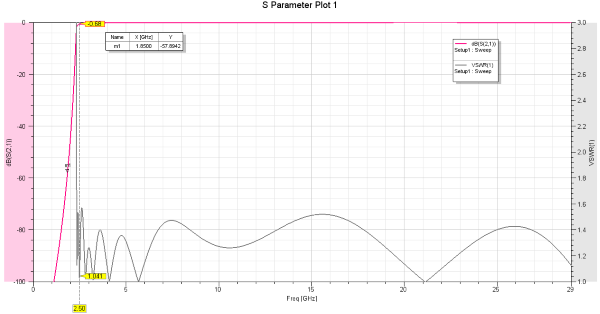

Test Plot:
More highpass filters can be seen in the table below:
