SKU：HRT-HF0118S
CATEGORY：Filters
TAGS：1-18GHz, High Pass Filters
| Frequency Range | 1-18 GHz |
| Insertion Loss | 1.5 dB max |
| Pass Band Flatness | TBD |
| VSWR | 1.8:1 max |
| Group Delay Variation | TBD |
| Power Handling | 15W cw max |
| Rejection | ≥45dBc@DC-800MHz |
| Input Connectors | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 35mm*25mm*10mm |
| Suface Finish | Black Painted |

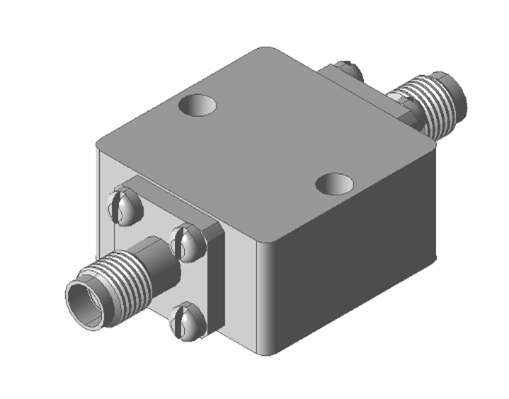

1-18GHz SMA-Female Suspended Stripline High Pass Filter Rated at 15 Watts (CW)
The HRT-HF0118S is a suspended stripline highpass filter. The pass band is 1-18GHz.lt has excellent rejection ≥45dBc@DC-800MHz. It has a maximum insertion loss of 1.5dB. The filter has SMA-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature
Freq. Range : 1-18 GHz
Insertion Loss : 1.5 dB max
VSWR : 1.8:1 max
Rejection : ≥45dBc@DC-800MHz
Power : 15 W cw
Operating Temp. : -40℃ to +70℃
Dimension L*W*H ： 35mm*25mm*10mm
Finishing : Paint Black
Test Plot:

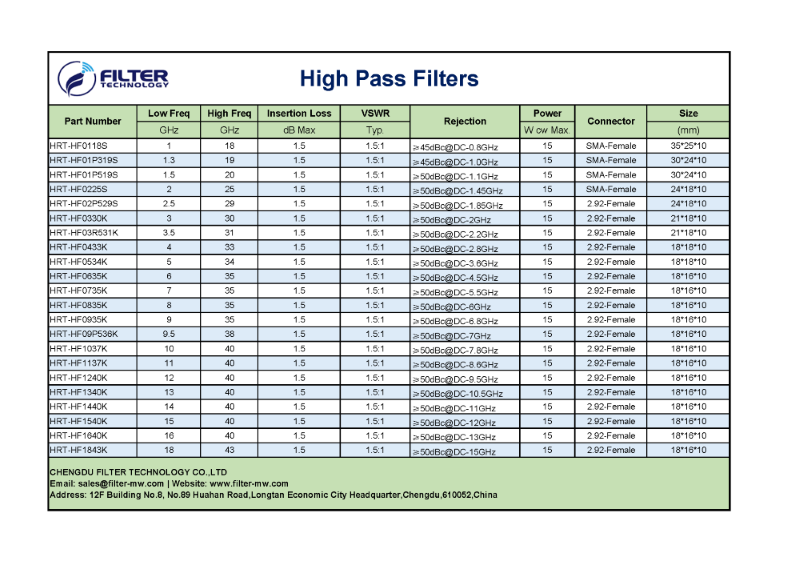

More highpass filters can be seen in the table below:
