HRT-HC(2000/8000)-90S

The HRT-HC(2000/8000)-90S is a 90 degree hybrid coupler that operates from 2 to 8 GHz and can handle up to 30 Watts . This SMA hybrid coupler offers 20 dB Isolation and 1.25:1 max VSWR. The package interface uses SMA on all of the ports.
HRT-HC(2000/8000)-90S
PDF DATASHEET
Qty:

SKU:HRT-HC(2000/8000)-90S

CATEGORY:90deg Hybrid Coupler

TAGS:2-8GHz

  • Specifications
  • Description
  • Contact Us
Frequency Range2000-8000 MHz
Nominal Coupling    3.0 dB
Nominal Degree90 deg
Insertion Loss0.8dB max (Excluding Nominal Coupling Loss)
VSWR 1.25:1 max
Isolation
20dB min
Amp. Unbalance±0.7 dB max
Phase Unbalance±6 deg max
Power Handling30 Watts(Average Power)
Input and Output ConnectorsSMA-Female (50 ohms)
Size60*25*11 mm
Suface FinishBlack Painted

50 ohms 90deg Hybrid Coupler SMA-Female Connectors From 2GHz to 8GHz Rated at 30 Watts

The HRT-HC(2000/8000)-90S is a 90 degree hybrid coupler that operates from 2 to 8 GHz and can handle up to 30 Watts . This SMA hybrid coupler offers 20 dB Isolation and 1.25:1 max VSWR. The package interface uses SMA on all of the ports.


Key Electrical Specifications

Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.


Outline Drawing

All Diminsion in mm(inches)

Outline Tolerances ±0.3(0.012)

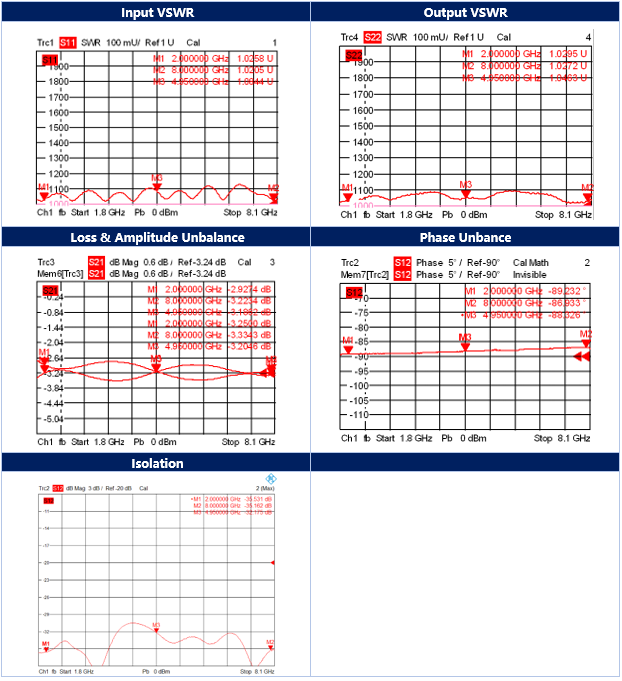

Test Plots

More details can be seen in data sheet.
