SKU：HRT-BF(2592.5/195)-1312N
CATEGORY：Bandpass Filters
TAGS：Cavity Filters
| Center Frequency(CF) | 2592.5 MHz |
| Bandwidth | 195 MHz |
| Insertion Loss | 0.5 dB max |
| Pass Band Flatness | 0.2 dB max |
| Return Loss | 16 dB min |
| Group Delay Variation | TBD |
| Power Handling | 20W cw max |
| Rejection | ≥20dB@2200-2340MHz, ≥20dB@2860-3000MHz, |
| Input Connectors | N-Female (50 ohms) |
| Output Connectors | N-Female (50 ohms) |
| Size | 56*56*30 mm |
| Suface Finish | Black Painted |
2495-2690MHz N-Female Coaxial Cavity Band Pass Filter Rated at 20 Watts (CW)
The HRT-BF(2592.5/195)-1312N is a cavity band pass filter. The pass band is 2495-2690MHz.lt has excellent rejection ≥20dB@2200-2340MHz&2860-3000MHz. It has a maximum insertion loss of 0.5dB. The HRT-BF(2592.5/195)-1312N has N-Female connectors.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature

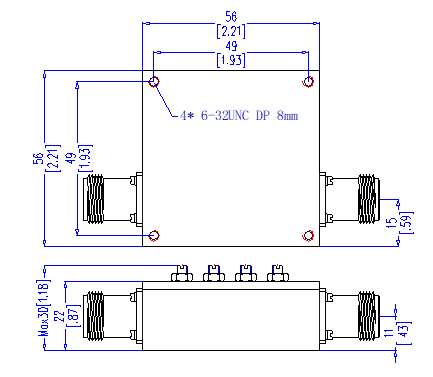

Outline Drawing
Test Plot
More details can be seen in data sheet.
