| Frequency Range | 0.5-26.5 GHz |
| Nominal Splitter | 3.0 dB |
| Insertion Loss | 1.8 dB max |
| Input VSWR | 1.50:1 max |
| Output VSWR | 1.50:1 max |
| Isolation | 16 dB min |
| Amp. Unbalance | ±0.5 dB max |
| Phase Unbalance | ±4° max |
| Power Handling | 30 Watts(Forward Power); 2 Watt(Reverse Power) |
| Input Connector | SMA-Female (50 ohms) |
| Output Connectors | SMA-Female (50 ohms) |
| Size | 150*26*10 mm |
| Suface Finish | Black Painted |
2 way Power Divider 2.92 Connectors From 0.5GHz to 26.5GHz Rated at 30 Watts (CW)
The HPD0.5-26.5G-2S is a 2 way Wilkinson power divider that operates from 0.5 to 26.5 GHz and can handle up to 30 Watts . This power divider offers 16 dB Isolation and 1.50:1 max VSWR. The package interface uses SMA connectors on all of the ports.
Key Electrical Specifications
Key Electrical Specifications Electronic Specification Note : Values at 25deg , sea level. Test indicators will deteriorate at high and low temperature.

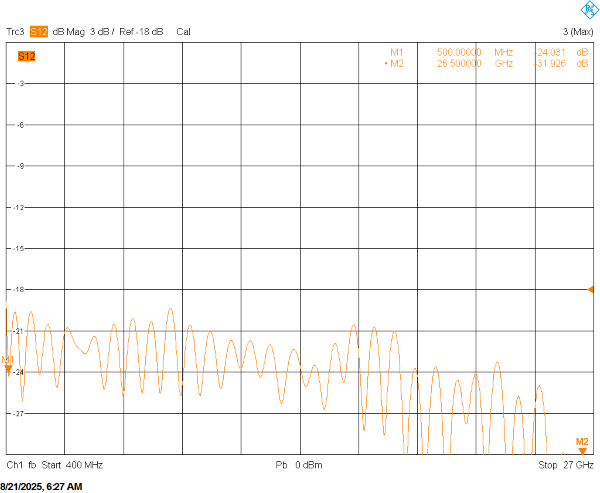

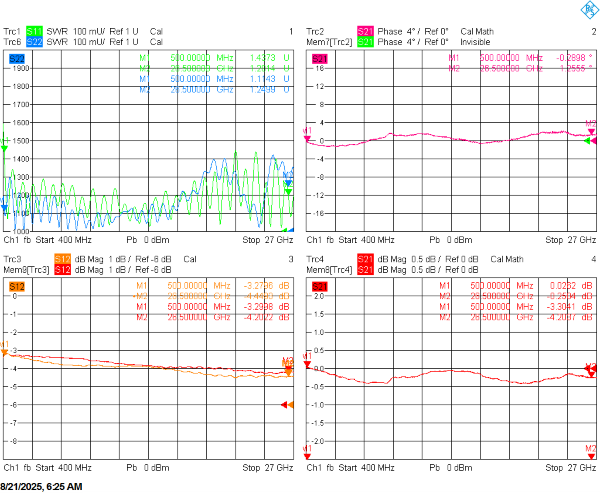

Test Plots
More details can be seen in data sheet.
